Models

* All dimensions are approximate. As each unit is hand made the end result may vary slightly.

Model 1

The Model 1 is a more traditional sized custom pen with a cap diameter slightly larger than the body creating a small step when closed. The lines on the cap are mostly straight while the body has a slight taper

Unless specified, the Model 1 does not post. A taper can be added to allow posting but depth of posting and amount of taper will depend on the material selection. Not all materials can be turned thin enough to provide a long enough taper to post.

Specifications

  • Closed/Capped ~150mm
  • Open nib tip to tail ~140mm
  • Body diameter ~14mm
  • Cap diameter ~ 16.5mm
  • Grip dimameter ~ Pinched 12 - 11mm
  • Cap threads ~ 13mm triple start
  • Filler: Std. International Cartridge / Converter
Model 1 Pen Image

Model 1 Plus

The Model 1 Plus is a Model 1 but slightly larger on all dimensions.

The Model 1 Plust is NOT postable.

Specifications

  • Closed/Capped ~155mm
  • Open nib tip to tail ~143mm
  • Body diameter ~15.5mm
  • Cap diameter ~17.5mm
  • Grip dimameter ~ Pinched 12-11mm
  • Cap threads ~ 13mm triple start
  • Filler: Std. International Cartridge / Converter

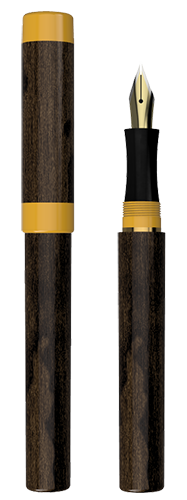

Model 2 Pen Image

Model 3

The Model 3 is a flush cap to body transition creating a minimal to no step between the body and cap when closed. Some matieral choices dictate a slight step to maintain structural integrity.

The Model 3 typically will maintain straight lines for part of the pen and then introduce a straight taper down to the flat finials.

Specifications

  • Closed/Capped ~155mm
  • Open nib tip to tail ~140mm
  • Body diameter ~15.5mm
  • Cap diameter ~ 15.5mm
  • Grip dimameter ~ Pinched 12 - 11mm
  • Cap threads ~ 13mm triple start
  • Filler: Std. International Cartridge / Converter

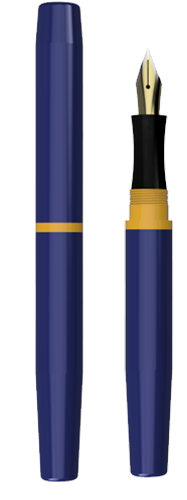

Model 3 Pen Image

Additional model designs will be posted shortly

New models are pending drawings and measurement details before posting. Please check back soon or contact us for inquiries.

Model 5 Pen Image
